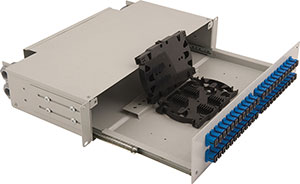

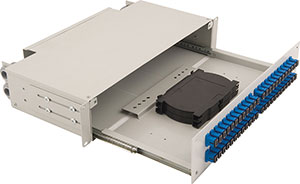

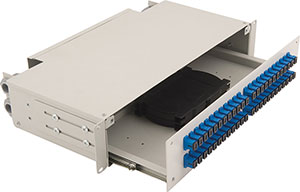

2RU Fiber Termination Patch/Splice Panel
The RailSlide 2RU Fiber Termination Patch/Splice Panel is designed for use as a rack mount
interconnect point where termination and connectivity of up to 96 fibers is desired. This solution
allows for easy access to the front patch cords as well as the splice trays and pigtails after
being pulled out. Mounted on telescopic runners to ensure the tray slides in and out with a
smooth action. Standard panels are available empty for complete field configuration,
half-loaded with adaptor plates for field termination and cable assembly installation, or stubbed
with a factory-installed cable assembly of a user specified length. The panel also offers
multiple cable entry solutions, up to 4 standard cable entry points for, loose tube, tight buffer,
preterminated and steel tape armoured cable. Each panel has integrated strength member tie
positions.
Features
- Accepts loose tube, distribution and
pre terminated cables
- Changeable adaptor panels
- Snap Latches for fixing the tray
- Pulled-open front pulled-out tray
- Optional splice tray kit for on site
conversion
to patch and splice panel |
Specifications
- Cold Rolled Steel
- Durable textured powder coat finish
available in black or white
- Universal 19/21" EIA/TIA rack compatibility
- Front and back side mounting options
- Standard cable stub location is left/right side |
| |
|
|
